Unify - Anova GO: Meters Launch

Previous Article: Unify - OPERATIONS Menu: Meters Launch

ANOVA GO

VIEW METERS

78 –  Open the ANOVA GO app.

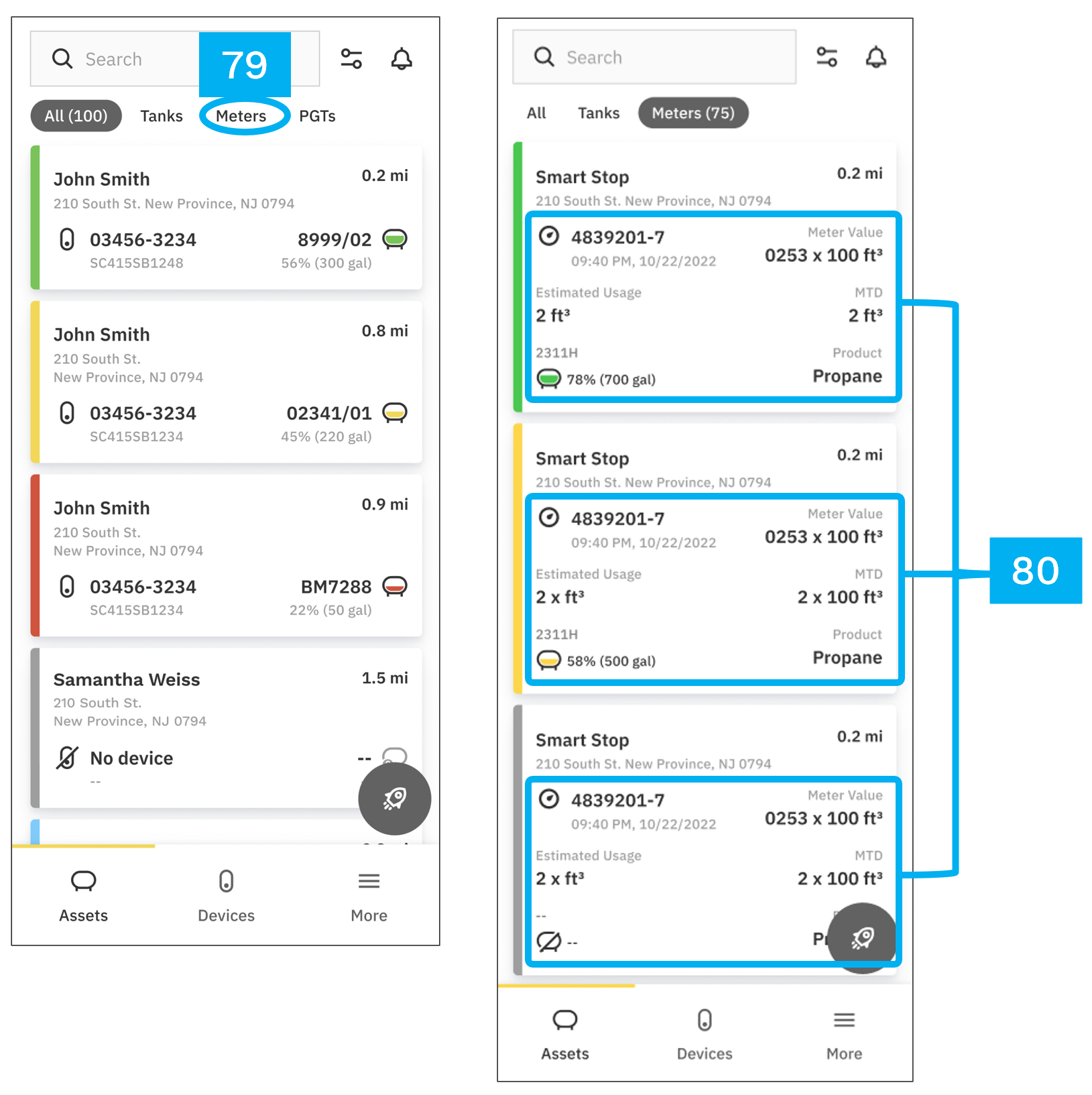

79 – On the ASSETS PAGE, the user can view all ASSETS together or individually filtered by type. In this example it’s filtered by METERS.

80 – The meters displayed will be the following fields:

• METER NUMBER;

• LAST READING DATE;

• METER VALUE;

• ESTIMATED USAGE;

• MTD;

• TANK (if existent);

• PRODUCT.

SEARCH FOR METERS

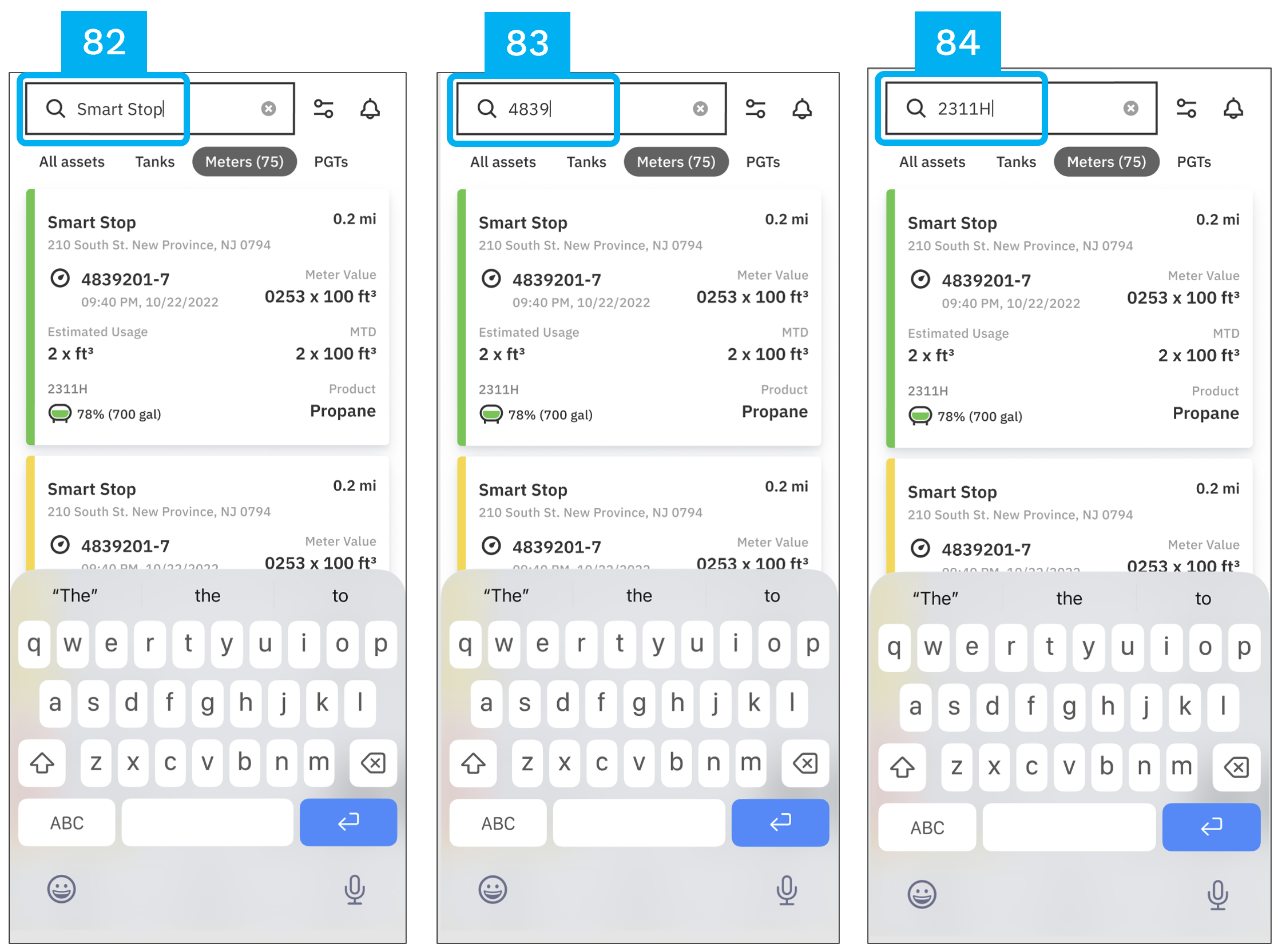

81 –  The user can search for METERS by:

• 82 – Site Name

• 83 – Meter Name

• 84 – Tank Name

METERS ON SETTINGS MENU

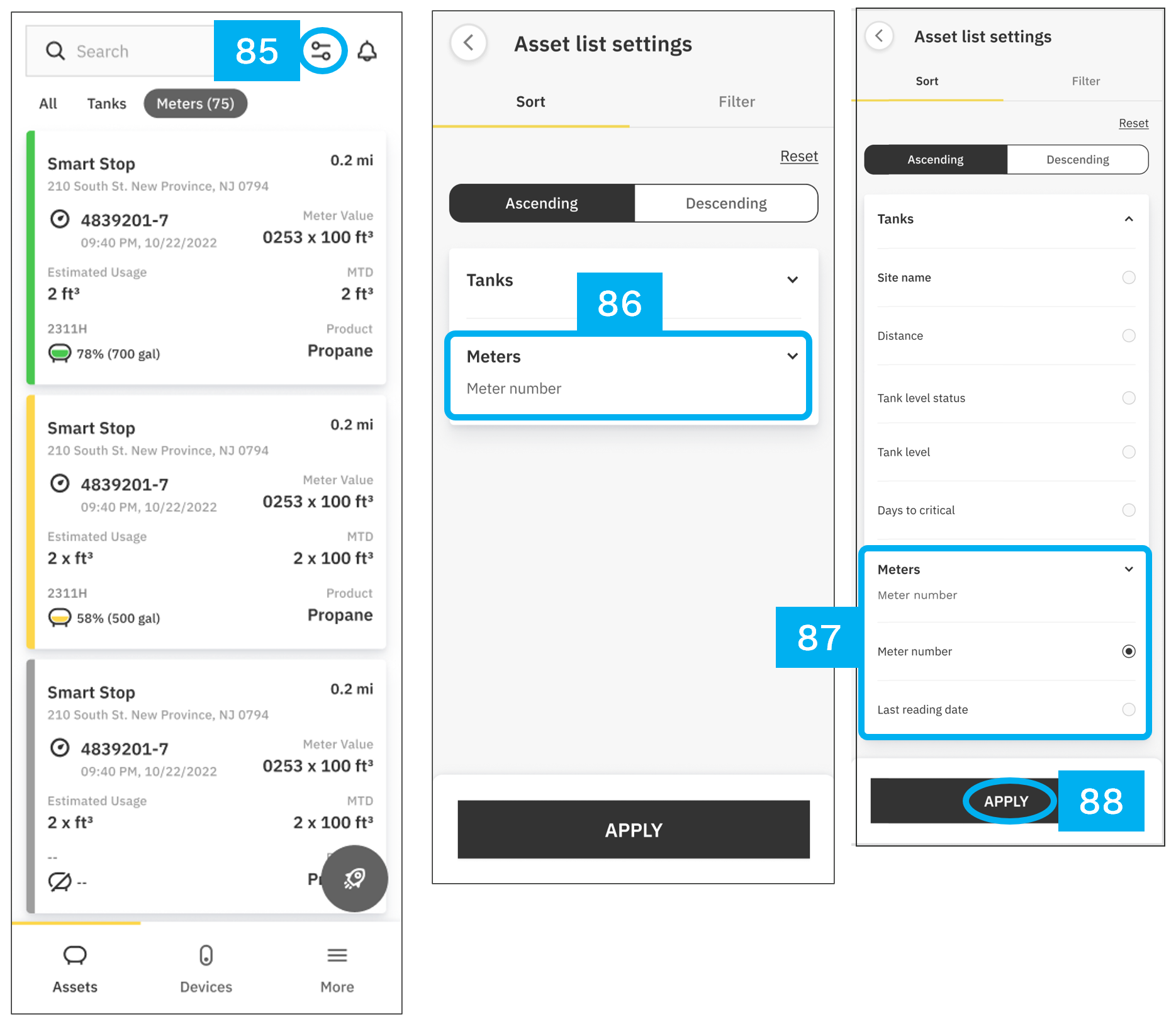

85 – On the METER SETTINGS, click on the FILTER icon on the top-right corner.

86 – Click on METERS section to expand.

87 – On the METERS section the user can sort tanks by:

• Meter number

• Last reading date

88 – Click on “APPLY” to save any changes.

SHOW METERS DETAILS ON SITE PAGE

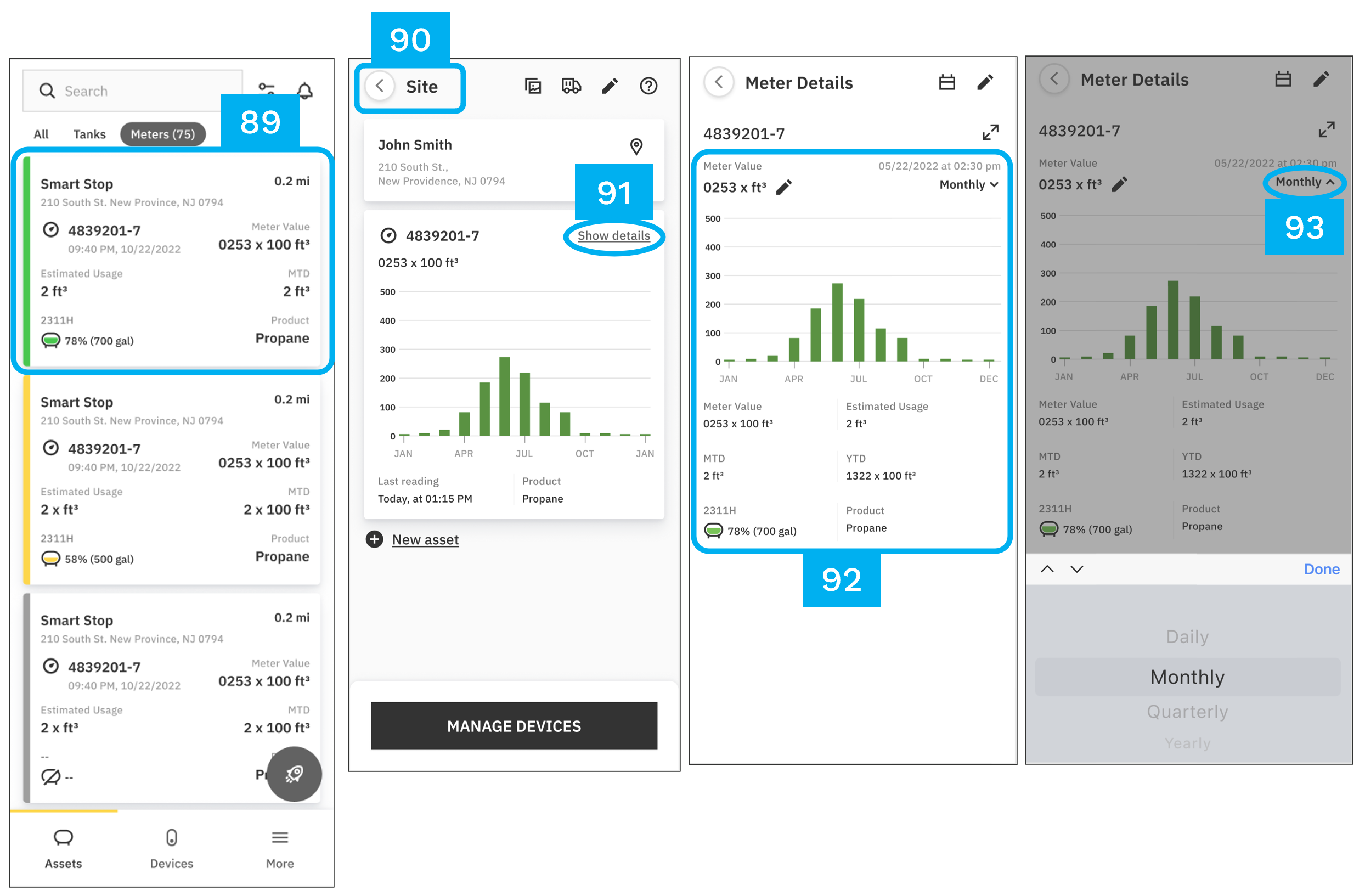

89 – Click on the Asset.

90 – The Site page will open.

91 – Click on “Show details” next to the meter name.

92 – The user will be able to view the METER VALUE and the LAST READING timestamp at the top.

The user will also be able to view the USAGE CHART  and the following fields:

• Meter Value

• Estimated Usage

• MTD

• YTD

• Tank name

• Product

93 – Click on MONTHLY to select the time range between:

• Daily

• Monthly

• Quarterly

• Yearly

METER DEPLOYMENT

STEP 1 - SELECT DEVICE

1.1 - Update the ANOVA GO mobile APP to the latest version.

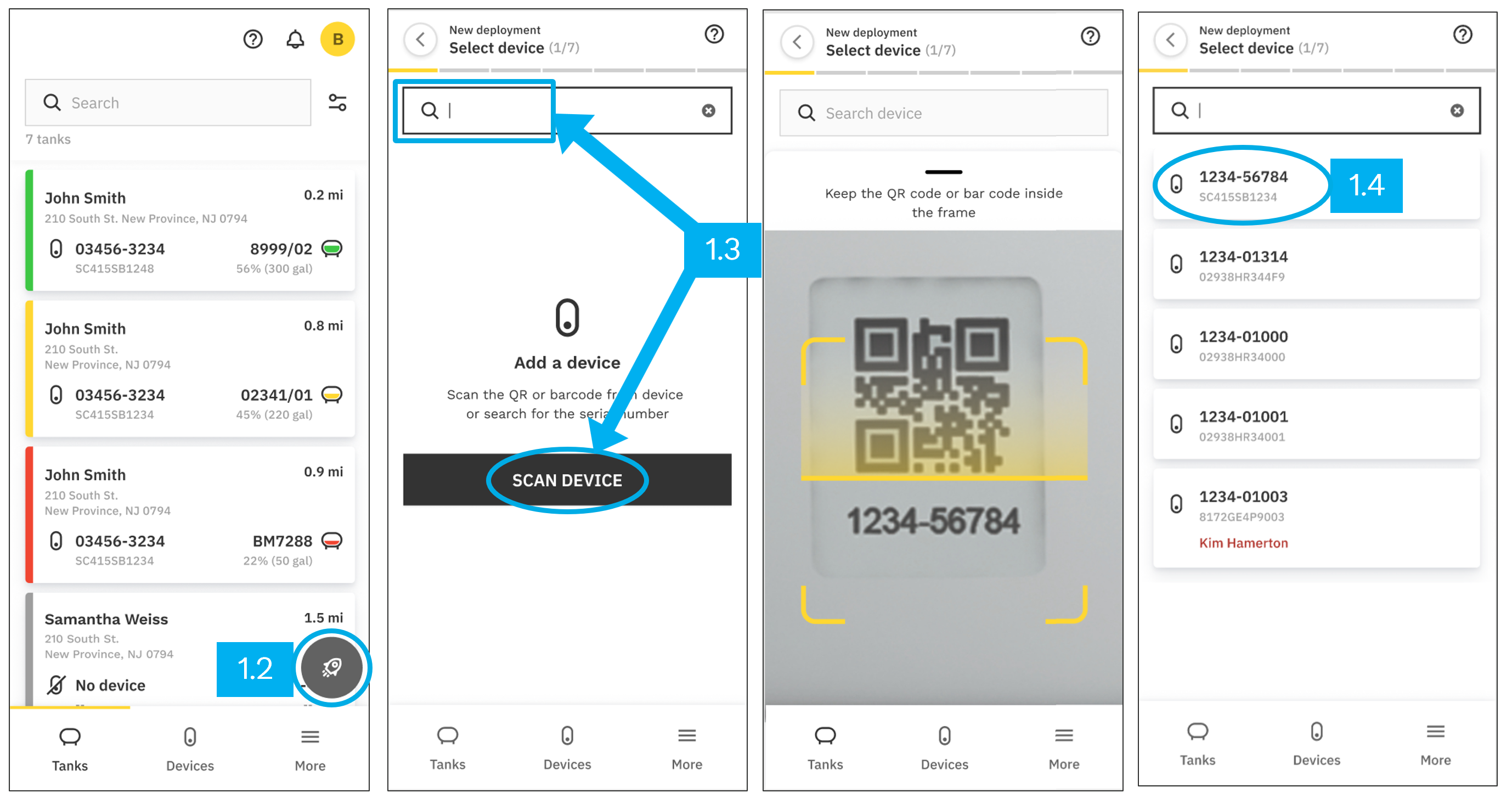

1.2 - Click to open the APP. On the HOME PAGE, click on the ROCKET ICON to start a NEW DEPLOYMENT.

1.3 - Insert the device SERIAL NUMBER on the TOP SEARCH BAR or click on SCAN DEVICE button to scan the device QR CODE.

1.4 - Confirm the device SERIAL NUMBER. Click to select.

STEP 2 - SELECT SITE

CREATING NEW SITE:

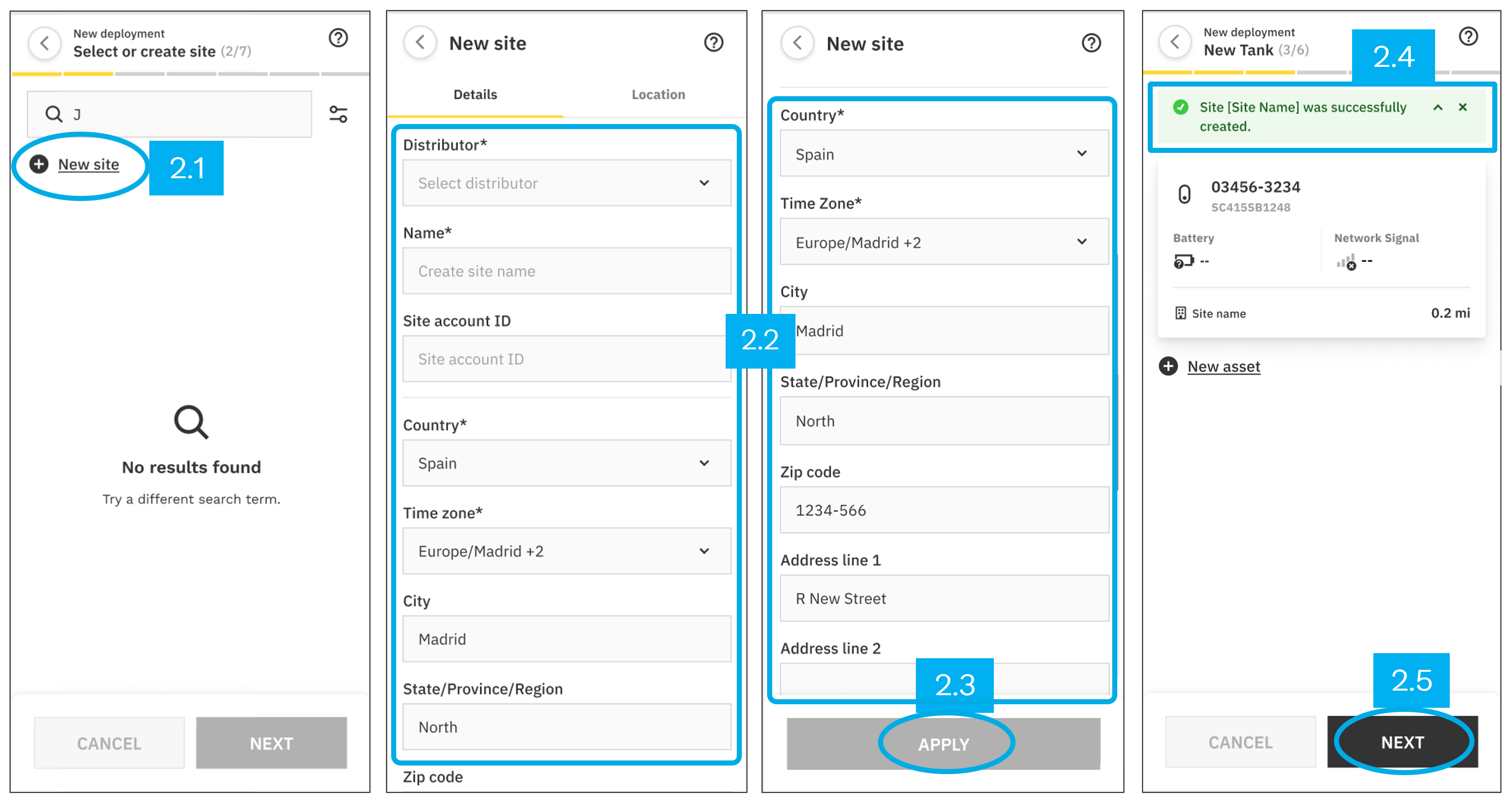

2.1 - Click on NEW SITE to create the new location in the platform.

2.2 - Fill the required FIELDS to create the NEW SITE.

2.3 - Click APPLY.

2.4 - A message in color green will show in the top of the page stating “Site [SITE NAME] was successfully created”.

2.5 - Click NEXT.

SELECTING EXISTING SITE:

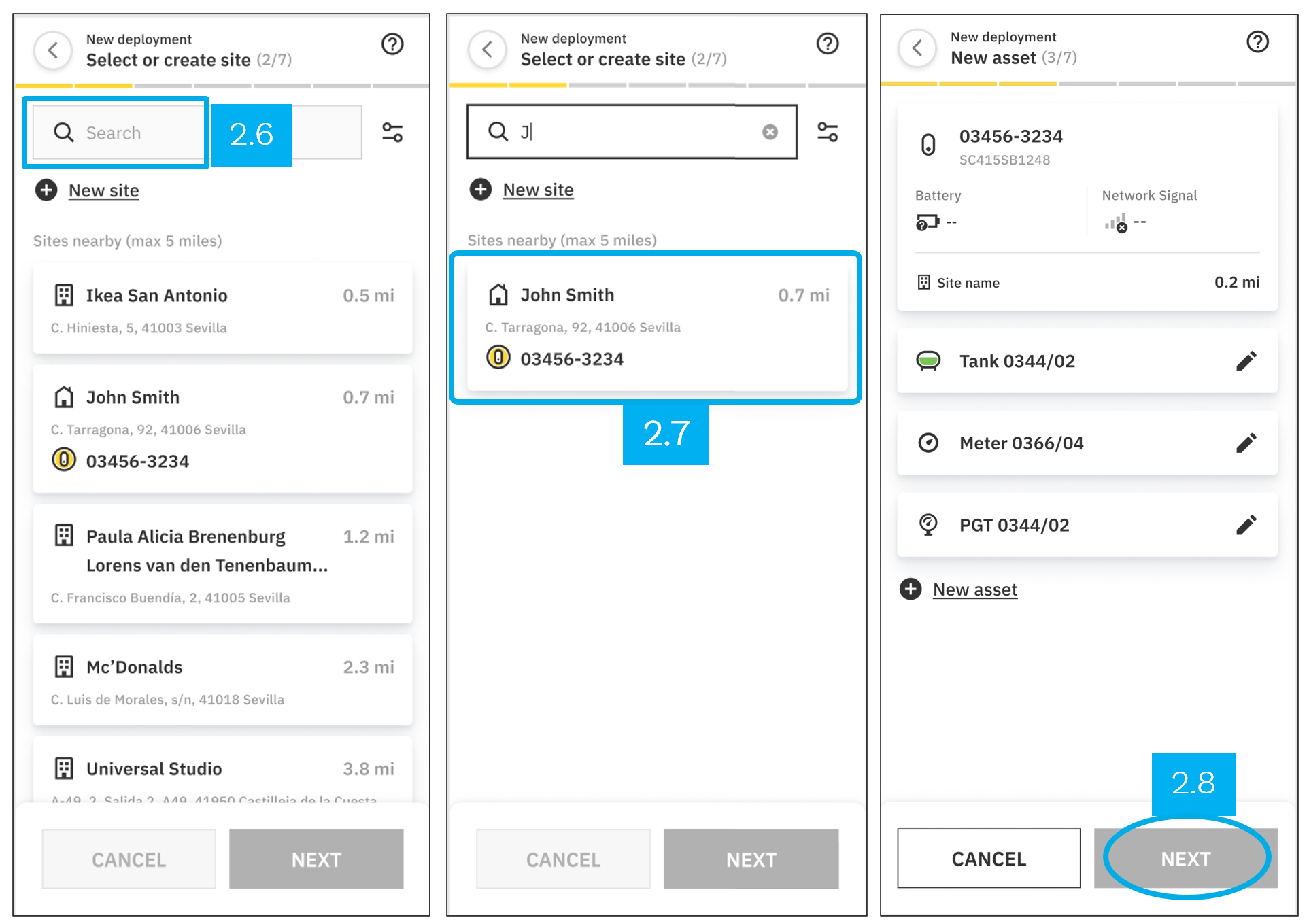

2.6 - Search for the EXISTING SITE in the TOP SEARCH BAR.

2.7 - Select EXISTING SITE.

2.8 - Click NEXT.

STEP 3 - SELECT TANK

CREATING METER IN EXISTING SITE – FOR DISTRIBUTOR WITH 1 PRODUCT GROUP:

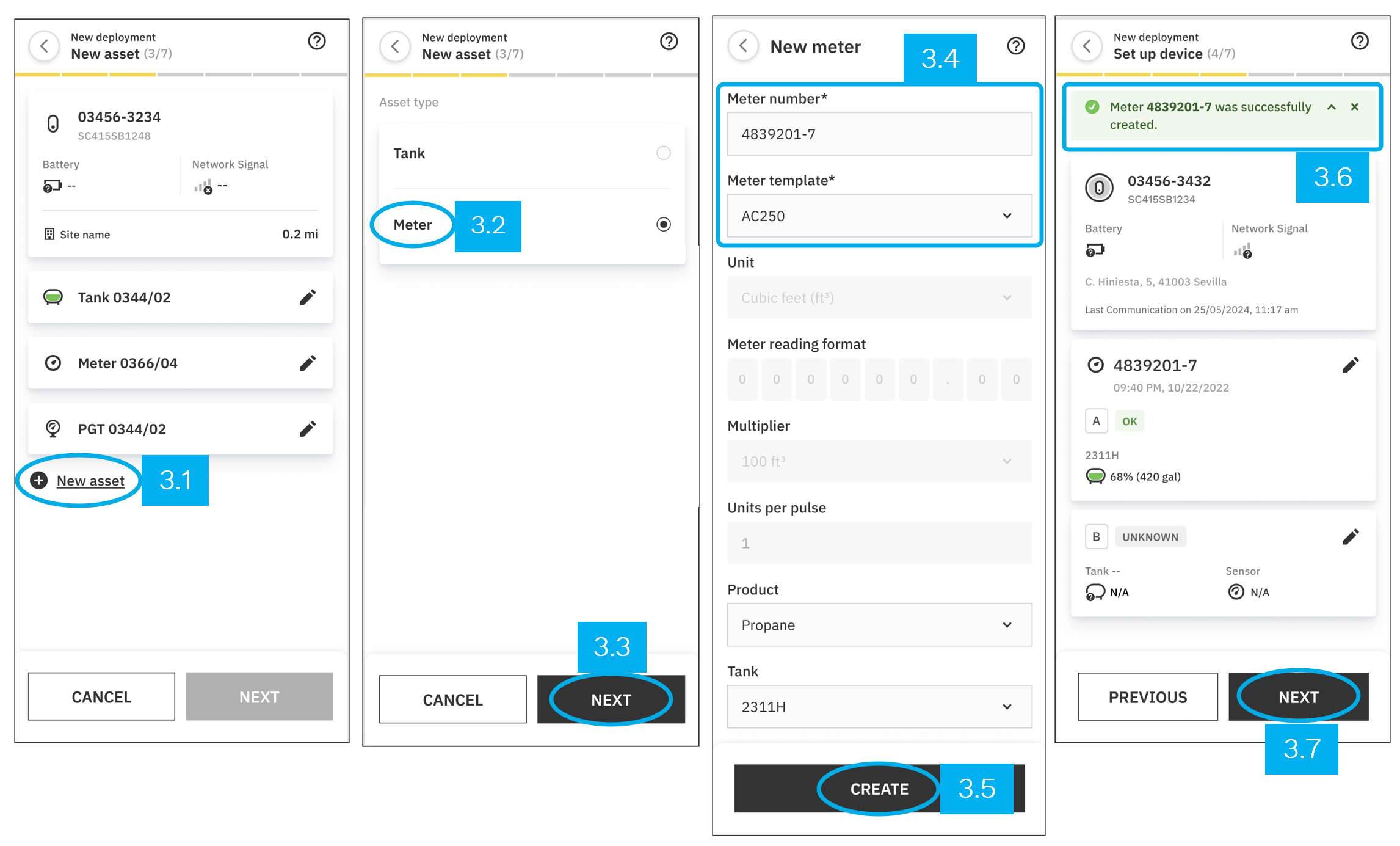

3.1 – Click on NEW ASSET.

3.2 – Select the Asset type: METER.

3.3 – Click on NEXT.

3.4 – To create a new meter the following fields need to be filled: Meter number; and Meter template.

By selecting the Meter Template, the following fields will be automatically populated:

• Unit;

• Meter Reading Format;

• Multiplier;

• Units per pulse and Product.

The Tank field is optional.

3.5 – Click on CREATE.

3.6 – The screen will move to the next step SET UP DEVICE and a message in color green stating “Meter <Meter Name> was successfully created.” will appear in the top.

3.7 – Click on NEXT.

STEP 4 - SET UP DEVICE

ASSET TYPE: METER

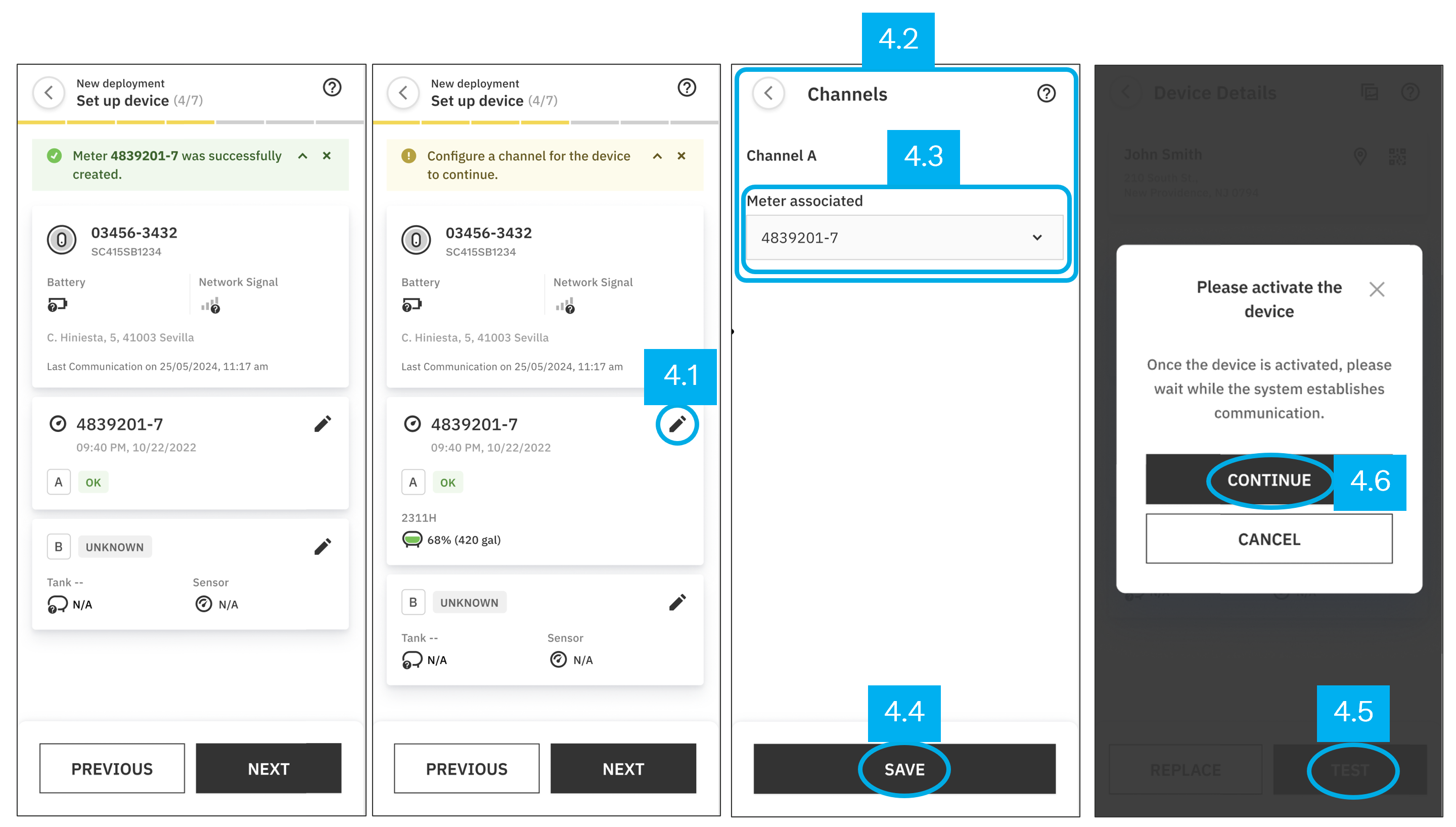

4.1 – Click on the PENCIL icon next to the NEW CHANNEL.

4.2 – The CHANNEL page will open.

4.3 – Select the correct meter from the list of options provided.

4.4 – Click on SAVE.

4.5 – The screen will go back to the SET UP DEVICE page. Click on  NEXT.

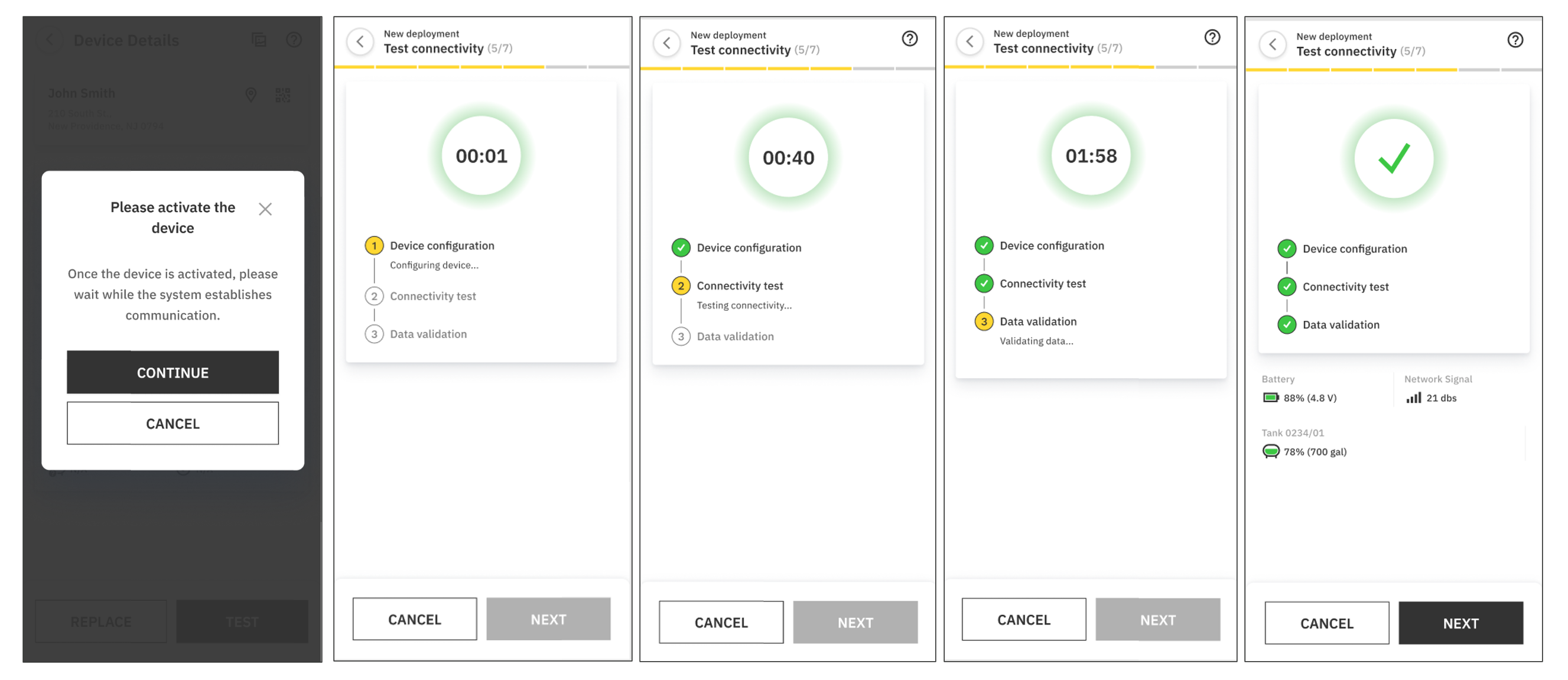

4.6 – It’s now necessary to activate the device for these configurations to be received. Click CONTINUE to proceed.

STEP 5 - TEST CONNECTIVITY

5 - After starting the device activation, the APP will go through a process of 3 steps to validate the device communication to the system.

STEP 6 - ENTER METER READING

METER VIEW:

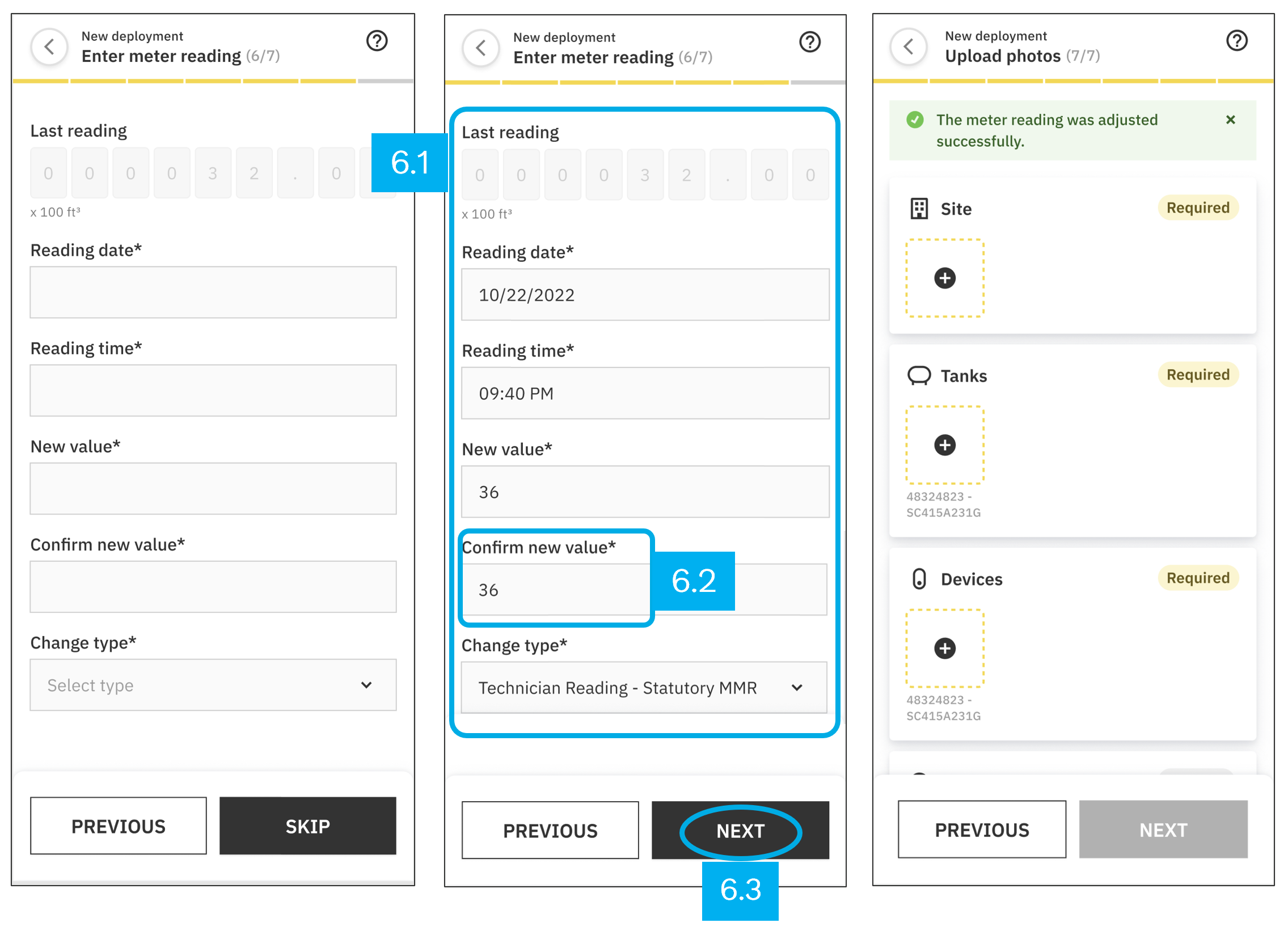

6.1 – (OPTIONAL) To enter the meter reading, the following fields need to be filled:

• Reading date
• Reading time
• New value
• Change type

6.2 – (OPTIONAL) To confirm the new value, insert the value in field CONFIRM NEW VALUE.

6.3 – Click on NEXT.

STEP 7 - UPLOAD PHOTOS

ASSET TYPE: METER

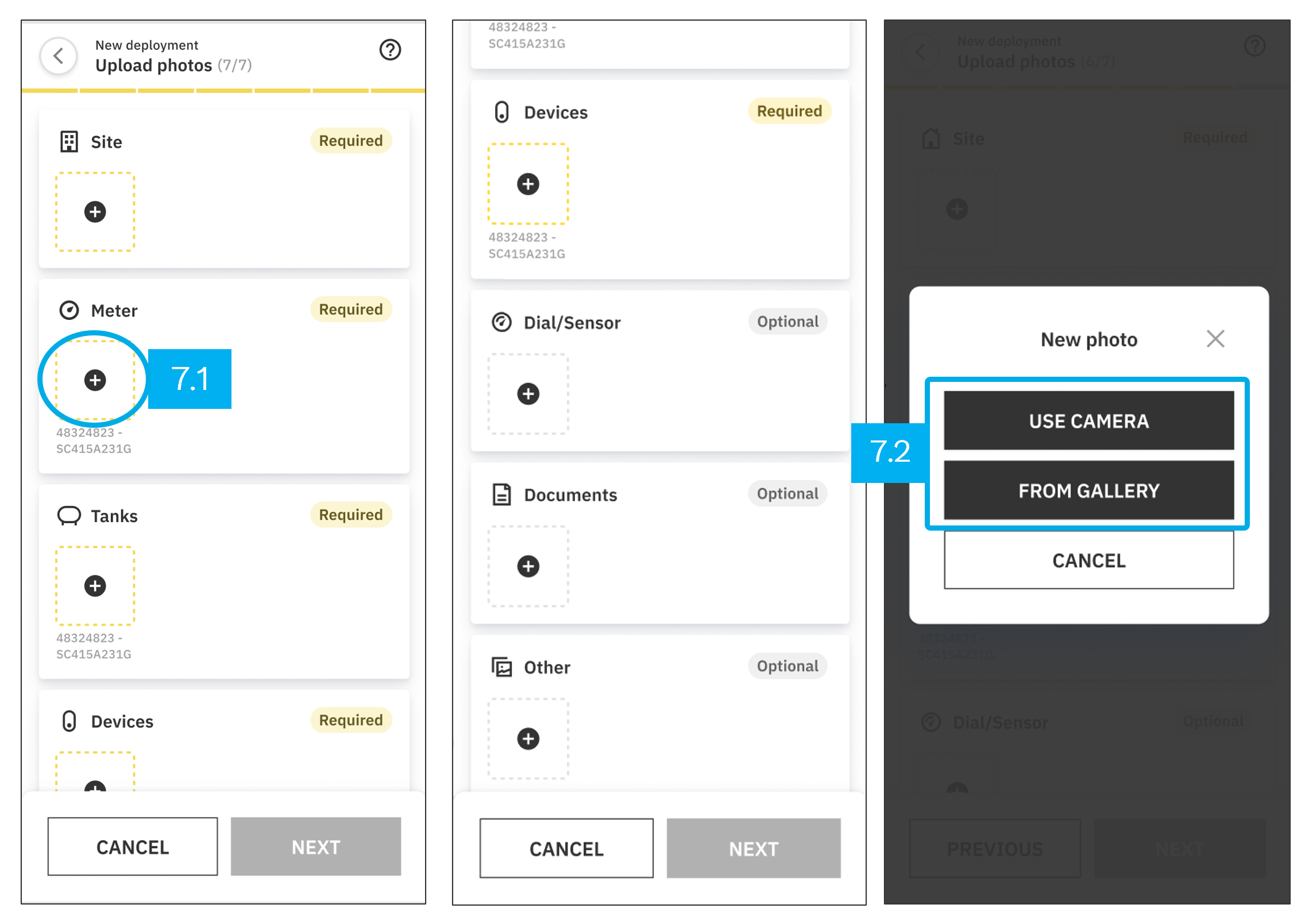

7.1 – Photos of the SITE, METER, TANK and DEVICE are mandatory. While photos of the DIAL/SENSOR, DOCUMENTS or any OTHER additional information are OPTIONAL. Click on the “+” icon to ADD PHOTOS to each SECTION.

7.2 – A pop-up window will appear to  select  photos FROM GALLERY or to  USE CAMERA.

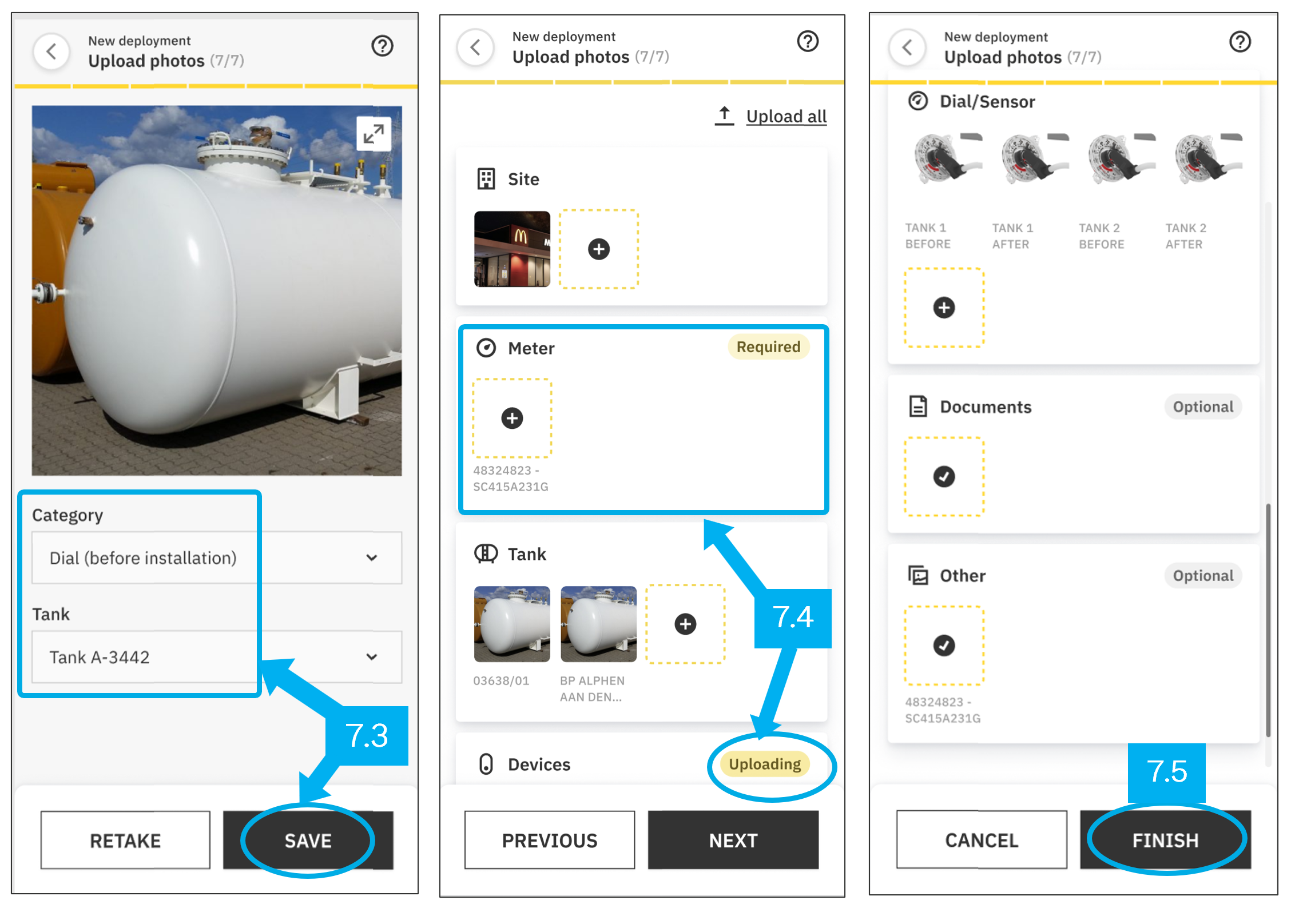

7.3 –  After selecting the photo(s), confirm to which CATEGORY and TANK they refer to. Click SAVE.

7.4 – Photos of each section will take a few moments to upload. You’ll be able to track the progress until it’s completed. The label “PENDING” will appear for  sections waiting to be uploaded.

7.5 – The labels “UPLOADING” and “PENDING” will disappear when all photos have been uploaded. Click FINISH to proceed.

STEP 8 – FINISHED! – INSTALLATION COMPLETED

ASSET TYPE: METER

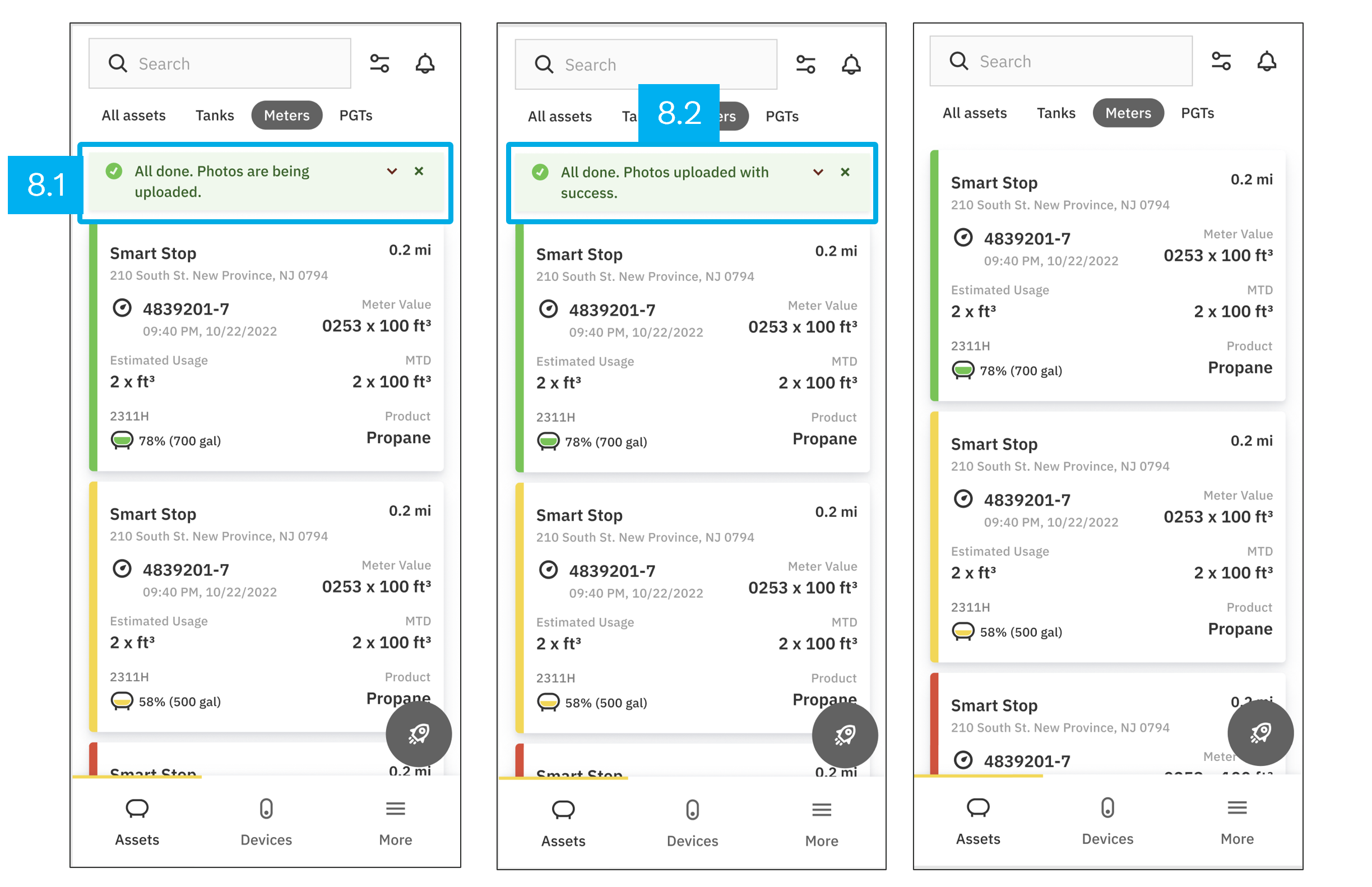

8.1 -  A message in color green will show at the top of the page stating “All done. Photos are being uploaded.”.

8.2 – Wait a few seconds/minutes and the message will change “All done. Photos uploaded with success.” when operation is complete.

8.3 – The installation is now complete. The new meter will be displayed in the Tanks List Page alongside the other tanks.

EDIT METER

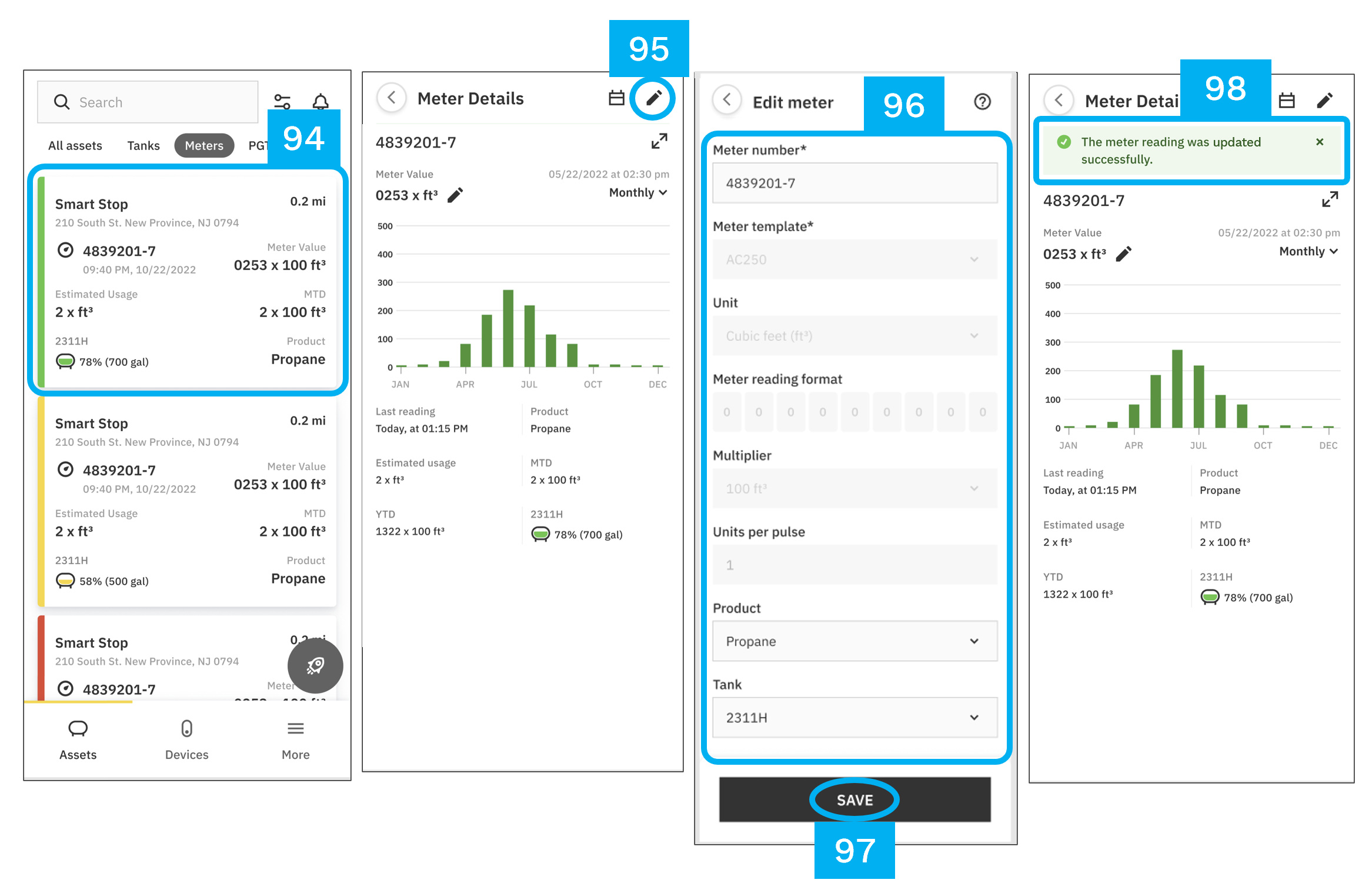

94 – Click on the desired Meter Card to navigate to the Meter Details page.

95 – On the Meter Details page, click on the pencil icon on the top-right corner to edit the meter details.

96 – Edit the necessary fields. The following fields are available to edit:

• Meter number

• Product

• Tank

97 – Click on SAVE.

98 – The screen will refresh and go back automatically to the Meter Details Page. A message in color green stating “ The meter reading was updated successfully.” will appear at the top.

ADJUST METER

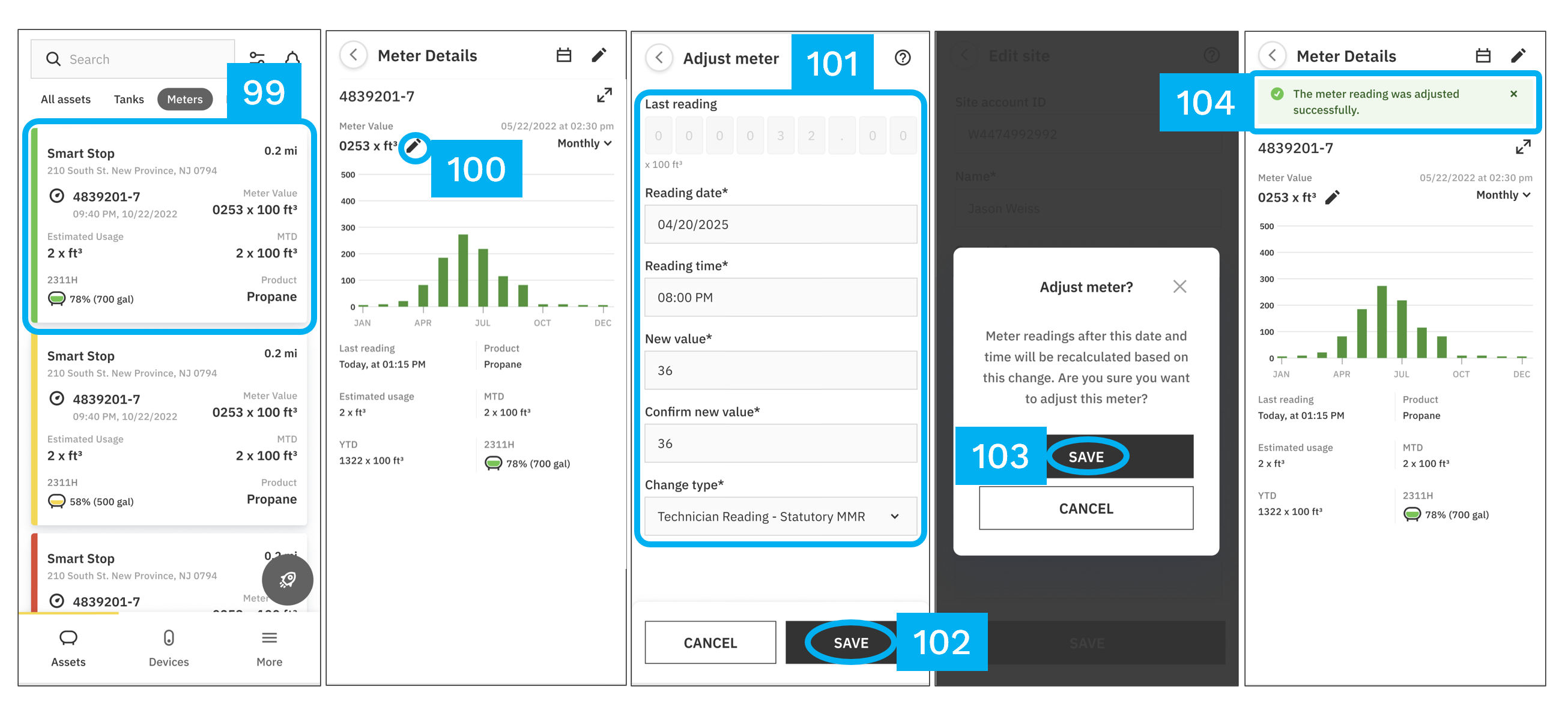

99 – Click on the desired Meter Card to navigate to the Meter Details page.

100 – On the Meter Details page, click on the pencil icon  next to the Meter Value to adjust the meter readings.

101 – Fill in all mandatory  fields:

• Reading date

• Reading time

• New value

• Confirm new value

• Change type

102 - Click on SAVE.

103 –  A pop-up window will appear requesting confirmation to save changes. Click SAVE.

104 – The screen will refresh and go back automatically to the Meter Details Page. A message in color green stating “ The meter reading was updated successfully.” will appear at the top.
