PRESSURE GAUGE DEPLOYMENT ​

STEP 1 – SELECT DEVICE​

1.1 - Update the ANOVA GO mobile APP to the latest version. ​

NOTE: The ANOVA GO APP only supports Pressure Gauges starting on version 4.1.0 (included).​

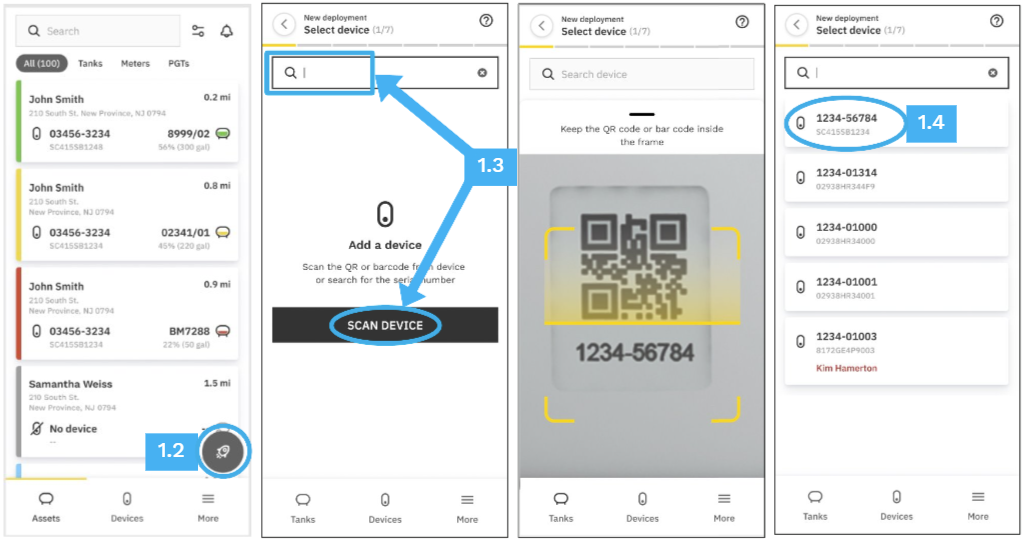

1.2 - Click to open the APP. On the HOME PAGE, click on the ROCKET ICON to start a NEW DEPLOYMENT. ​

1.3 - Search for the device SERIAL NUMBER on the TOP SEARCH BAR or click on SCAN DEVICE button to scan the device QR CODE. ​

1.4 - Confirm the device SERIAL NUMBER. Click to select.

STEP 2 – SELECT SITE​

CREATING NEW SITE:​

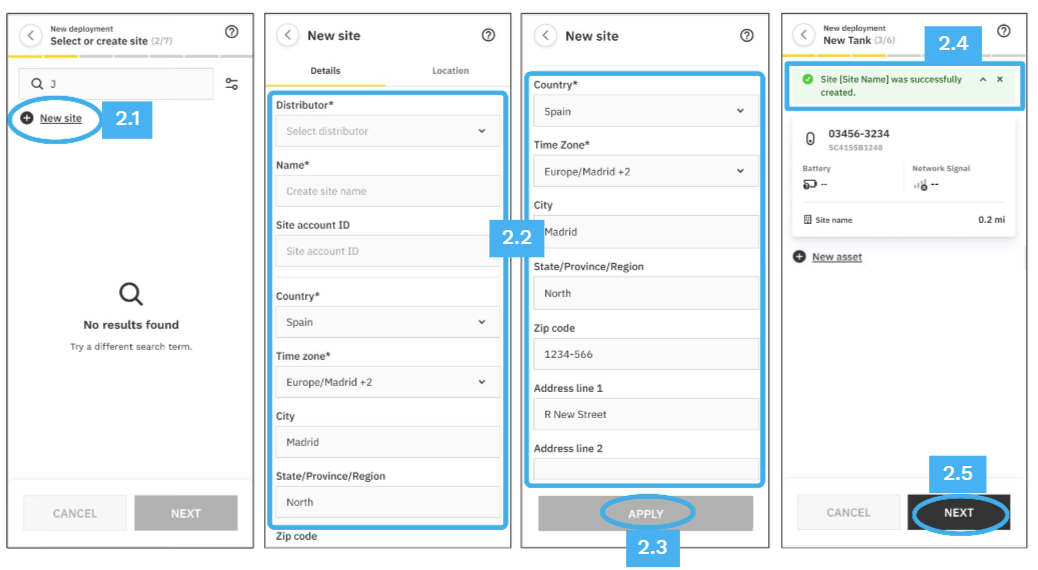

2.1 - Click on NEW SITE to create the new location in the platform.​

2.2 - Fill the required FIELDS to create the NEW SITE.​

2.3 - Click APPLY.​

2.4 - A message in color green will show in the top of the page stating “Site [SITE NAME] was successfully created”.​

2.5 - Click NEXT.

SELECTING EXISTING SITE:​

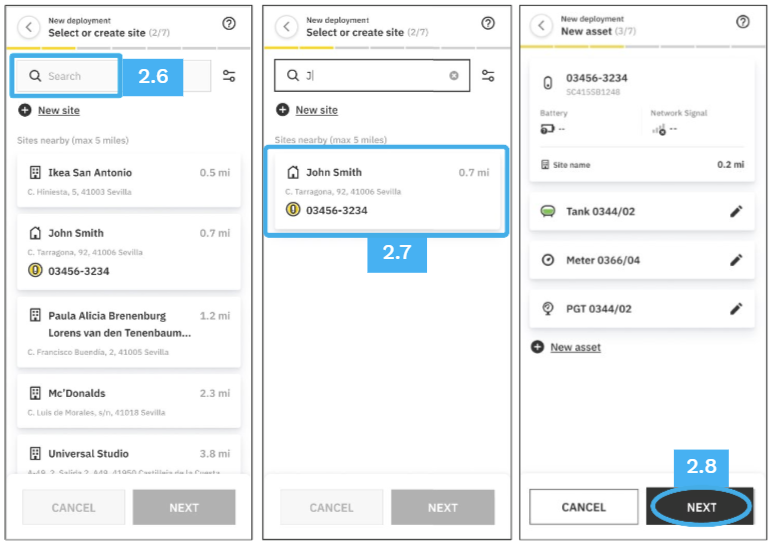

2.6 - Search for the EXISTING SITE in the TOP SEARCH BAR.​

2.7 - Select EXISTING SITE. ​

2.8 - Click NEXT.​

STEP 3 – NEW ASSET ​

CREATING PRESSURE GAUGE IN EXISTING SITE – FOR DISTRIBUTOR WITH 1 PRODUCT GROUP:​

WARNING: Before proceeding, the asset type “PRESSUREGAUGE”
must be enabled in the Unify Web Distributor Settings for the option “PRESSURE GAUGE” to appear.​

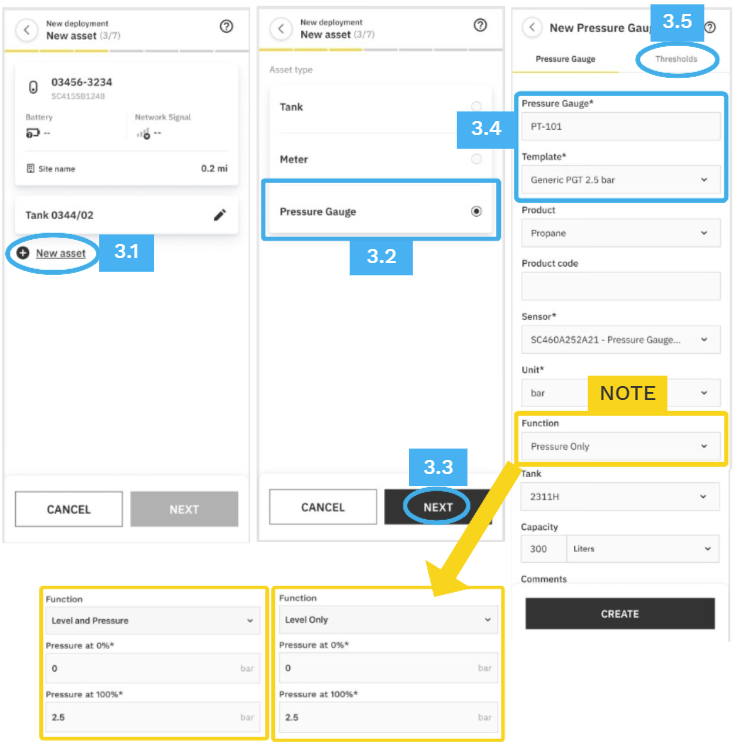

3.1 – Click on NEW ASSET. ​

3.2 – Select the Asset type: PRESSURE GAUGE.​

3.3 – Click on NEXT.​

3.4 – To create a new pressure gauge the following fields need to befilled: Pressure gauge name; and Pressure gauge template.​

By selecting the Pressure gauge Template, the following fields will be automatically populated: Product; Sensor; Unit and Function. The Tank field is optional.

NOTE: The fields “Pressure at 0%” and “Pressure at 100%” will appear only when “Function: Level Only” or “Level & Pressure” is selected. The value must be within the pressure gauge sensor’s range/span. ​

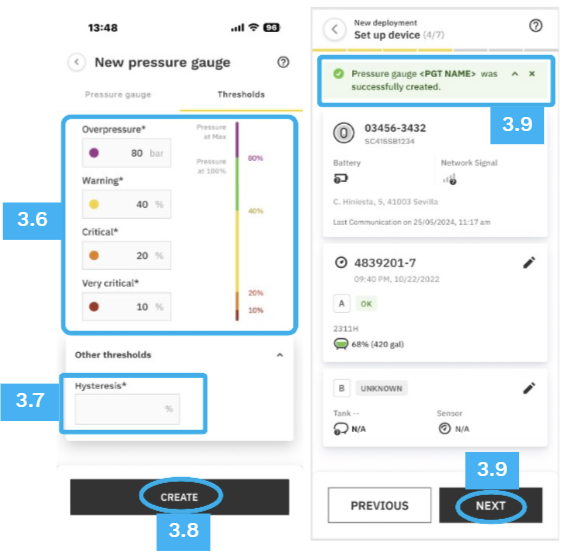

3.5 – Click on the THRESHOLDS tab.
